FV-10CG2H

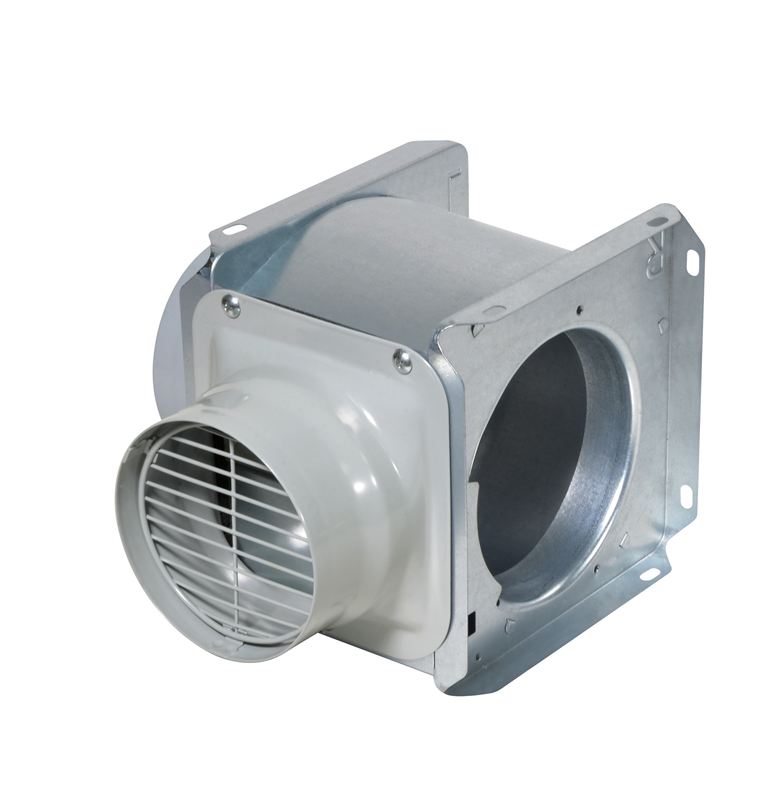

Mini Sirocco Ventilating [Air Volume (Hi):150CMH]

  • Impeller Diameter: 120mm
  • Thermo cut-off motor
  • Ambient temperature range from -10℃ to +40℃
  • Outlet direction is adjustable to horizontal or vertical position
Color: Silver
Price: HK$1,200



Feature

  • Impeller Diameter: 120mm
  • Long life induction motor with thermal cut-off
  • Hi / Lo speed selectable
  • Outlet direction is adjustable to horizontal or vertical position
  • Able to be used over an ambient temperature range from -10℃ to +40℃
  • Size(mm): 163(H) x 226(W) x 207(D)

Specifications

FV-10CG2H
FV-10CG2H
Voltage 220 Voltage (V)
Power Consumption High 15 Wattage (W)
Low 12 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 1315 R.P.M.
Low 1070 R.P.M.
Air Volume High 150 Cubic meters per hour (m3/h)
Low 110 Cubic meters per hour (m3/h)
Noise Level High 30 decibel (dB(A))
Low 26 decibel (dB(A))
Duct Diameter Ø 100 (mm)
Ø 4 (inch)
Weight 1.9 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
